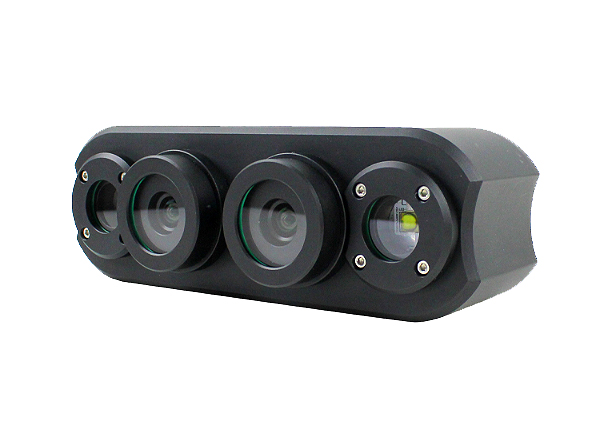

EK-CA5 high-definition 1080P underwater 100m binocular camera with built-in image enhancement algorithm. High synchronization, with binocular delay less than 1ms. Supports standard ONVIF and can connect to commonly used monitoring devices on the market.
| Model | EK-CA5 |
| Waterproof depth | 100 meters (depth customizable) |
| Shell material | 316L stainless steel/aluminum alloy hard oxidation |
| Resolving power | Route 2 1920 * 1080, Resolution of 3840 * 1080 after 2-channel splicing |
| Minimum illumination | 0.005Lux (color mode) 0.001Lux (black and white mode) |
| Camera lens | 3.3mm fixed focus |
| Image enhancement | Automatic fog transmission/green light suppression |
| Angle of view | Horizontal 84 °, vertical 62 ° |
| Binocular distance | 60mm |
| Support agreement | Support TCP/IP、UDP、RTP、RTSP、 RTCP、RTMP、 HTTP、DNS. DDNS、DHCP、NTP、PPPOE、 SMTP、UPNP; |
| Interface protocol | ONVIF |
| External interface | Standard network interface |
| Power supply | DC12-24V |
| Operation temperature | -20~ 60° |
| Consumption | Camera: ≤ 3W; Fill light: 15W per unit |
| Other | Provide SDK secondary development package |
| Connector | Industrial grade micro water tight plug, with a wire length of 0.6 meters |
Product size (mm)
