Electronic Control System

EK-R-600 Automatic Rewinder
EK-R-600 Automatic Rewinder

EK-R-600 Automatic Rewinder

This automatic cable reel has a joystick control for extending and releasing cables, four rotatable wheels, and the ability to freely move the cable reel. The standard cable length is 150m, and the maximum can reach 600m

Cable length Standard 150m, maximum 600m
Cable parameters:5-core, 4 * 1.5 Square millimeters
Diamension: 1120mm*960mm*1050mm
Contact us to obtain a quote
Product description

This automatic cable reel has a joystick control for extending and releasing cables, four rotatable wheels, and the ability to freely move the cable reel. The standard cable length is 150m, and the maximum can reach 600m

Sample Image
EK-R-600 Automatic Wire Winder
●IP65, dust proof and waterproof
●Standard cable length 150m, maximum can be 600m
●Diamension: 1120mm*960mm*1050mm
。

Product features

●IP65, dust proof and waterproof
●Standard cable length 150m, maximum can be 600m.

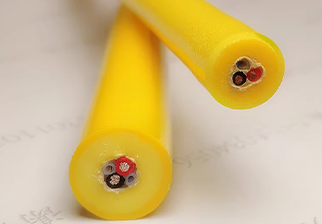

●Cable parameters: 5-core, 4 * 1.5 Square millimeters cores+3mm coated steel wire, Efficient flame-retardant, wear-resistant, waterproof, stretch-resistant, with waterproof cable connector.
●Joystick control for retracting and releasing cable.
●With stop switch in case of emergency
●Wifi antenna on the top of cable reel, connect with wifi to control
●Four steerable wheels, can move the cable reel freely
●Diamension: 1120mm*960mm*1050mm

Product size (mm)

Product Details


Product structure diagram
11. Power switch      12. Emergency stop switch      13. Wire spool      14. Wire feeding mechanism     15. Casters     16. Towards the double threaded rod     17. Lifting hook      18. Pushing hand      19. Battery display         20. Charging port 21. Chain

Cable selection

Steel wire cable
Zero buoyancy cable
Fiber optic cable with tensile strength

Operation steps:

1. Open the chassis and remove the robot and control cable reel.
2. Connect the control line to the robot interface, and apply waterproof silicone grease to the plug thread before each docking. After insertion, tighten the nut sleeve, otherwise the plug will not meet the waterproof standard.
3. Hang the hook on the robot host and place it into the pipeline.
4. Turn on the power switch on the electrical control box of the rewinder. Wireless control box, insert the key and turn on 2 wireless antennas. Not connecting the antennas will damage the wireless module. Turn on the power of the wireless control box and connect the signal for about 1-2 minutes. A video appears on the screen, indicating a successful signal connection. The robot can be controlled to move forward and backward by operating the joystick. By operating the wireless control box, the cable can be retracted.
