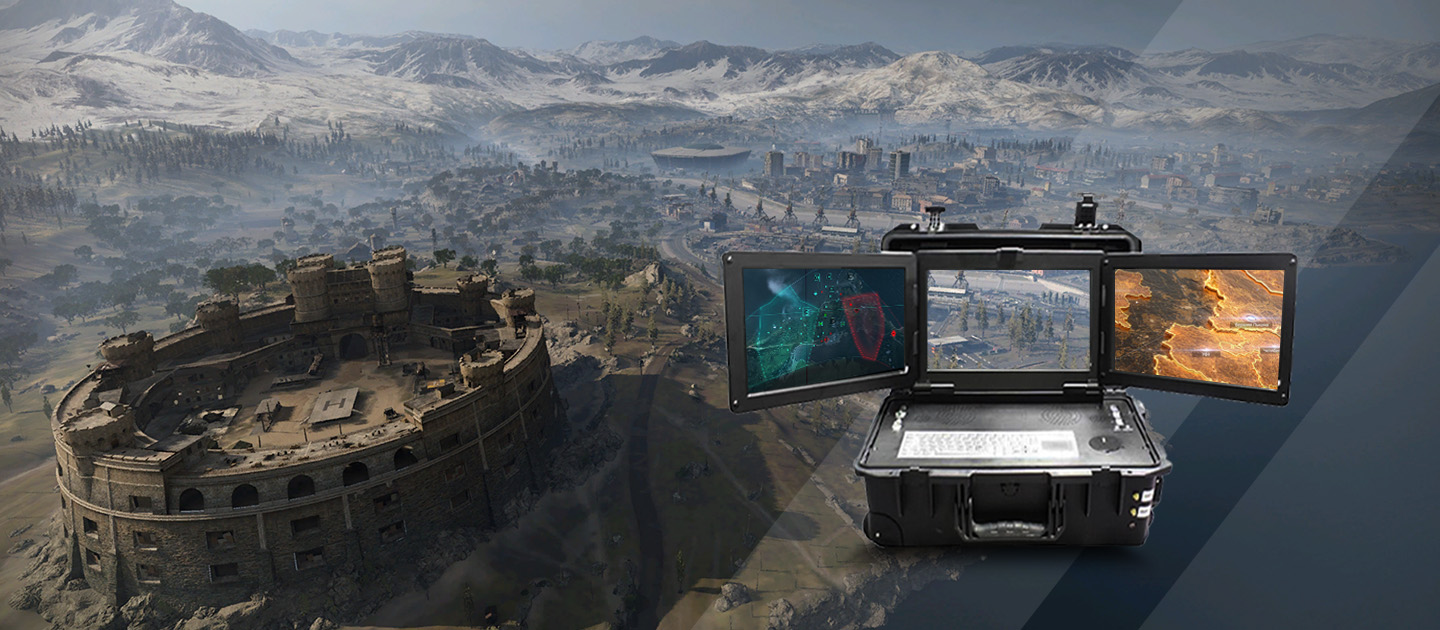

EK-CS3M is a portable three screen command box developed for on-site command. The product integrates MESH self-organized network, 5G public network, WIFI, and wired network, integrating various services such as voice, video, location, and data information at the accident scene. It has unified presentation, management, and provides three screen display function, achieving visual command. The host screen image can be projected to the front command center's large screen system, and linked with the rear command center to achieve communication and issuance.
| Host characteristics | Operating system | WIN10/64 bit |
| CPU | Intel(R) Core(TM) i7-12700F 210 GHz | |
| Display screen | 15.6 inches * 3 | |
| Internal memory | DDR4-64G memory | |
| Hard disk | 1TB solid-state drive | |
| Operating mode | Embedded mouse and keyboard | |
| RF parameters | Working frequency band | 1.4GHz |
| Working bandwidth | 5/10/20/40MHz，20MHz(Typical) | |
| RF Channel | 2T2R | |
| Transmission power | 20W | |
| Network parameters | Nodes | 64 units |
| Throughput rate | 82Mbps | |
| Encryption algorithm | AES | |
| Public network | 4G/5G All network connectivity | |
| WIFI | 2.4GHz | |
| Transmission distance | 10-20km (Sight distance) | |
| Physical/Environmental | Size | 577*353*211mm |
| Weight | 22kg (including batteries) | |
| Operation temperature | -20℃〜+65℃ | |
| Protection grade | IP65 | |
| Electrical Characteristics | Power supply | 19~24V |
| Battery capacity | 42Ah | |
| Interface | Ad hoc network antenna interface | N*2 |
| 5G antenna interface | SMA*4 | |
| WIFI antenna interface | SMA*1 | |
| GPS antenna interface | SMA*1 | |
| Video interface | HDMI*1 | |
| Data interface | USB*6 | |
| Network interface | Gigabit Ethernet port * 1 | |
| Voice interface | 7-core Remmer head * 1, 3.5mm * 2 |
