Product description

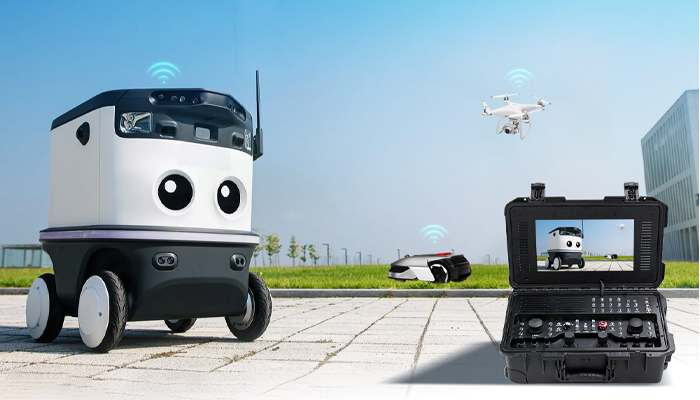

EK-CS2 remote control is a robot remote control developed by our company for robots, which integrates functions such as image reception, data transmission, real-time display, command and control. It is powerful and has stable performance. Adopting the leading MESH self-organizing network technology, images and data are encrypted during transmission. This device integrates functions such as image reception and remote control data transmission.
EK-CS2 UGV Control System
EK-CS2 UGV Control System
5-15km Data transmission
Real-time display
| RF parameters |
Working frequency band |
1.4G, customizable |
| Constellation pattern |
QPSK(4QAM)、16QAM、64QAM self-adaption |
| Transmission power |
20W |
| Working bandwidth |
5/10/20MHz adjustable |
| Receiver sensitivity |
-96dBm |
| Transmission-distance |
Urban environment 3-5 kilometers, visual distance 5-15 kilometers |
| Video parameters |
Screen size |
15.6-inch high-definition display screen |
| Video format |
HD: 1080P@60 |
| Video compression |
H.264 |
| Physical/Environmental |
Size |
557*353*211mm |
| Weight |
15kg |
| Operation temperature |
-20℃〜+50℃ |
| Electrical characteristics |
Power supply |
DC 12V |
| Consumption |
The average power consumption of the entire machine is less than 60w |
Product features:
15.6-inch high definition and high brightness screen:
Using a 15.6-inch high-definition high brightness screen for visibility under sunlight, the data feedback from the front-end is visible in real-time. For the convenience of clearer observation, an external display can be connected through the internet interface.
Bidirectional transmission:
The images and information collected by the front-end are transmitted to the back-end robot remote controller through the front-end trigger. The back-end robot remote controller can send control instructions to the robot, achieving bidirectional data transmission of the robot's intelligent communication system.
Remote control:
On the same site, it is possible to control multiple robots with one remote control, or to control multiple robots with multiple remote controls, achieving collaborative work among robot clusters.
Long transmission distance:
Urban environment 3-5 kilometers, visual distance 5-15 kilometers.
VIP customization:
Functionality can be adjusted according to the actual needs of customers, supporting 4G public network customization.
Networking function:
MESH self-organizing network, with no less than 9 relay hops and no less than 64 networking nodes.
Long working hours:
Built in battery, with a battery life of up to 4-5 hours, can work for long periods of time in emergency situations.
