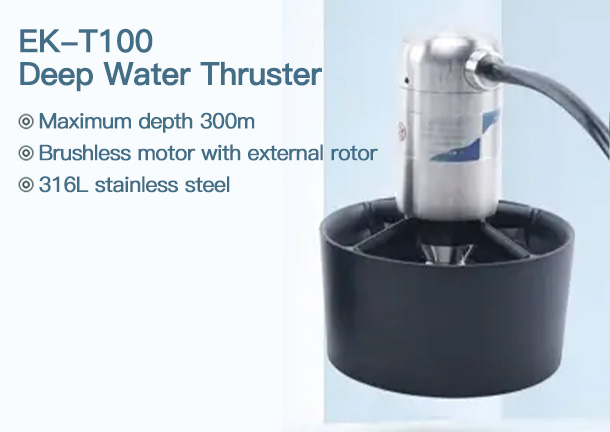

EK-T 100 ROV deep water thrusters is a high-power brushless motor that can withstand pressure up to 300m underwater. It is made of 316L stainless steel, which is not easy to rust and is very durable.
This product is mainly used as a power system for underwater robots and unmanned ships, and is applied in ocean exploration, sea
| Model number | EK-T 100-120-24 | EK-T 100-120-48 |
| Rated thrust | 11.7kgf(Forward) 7.7kgf(reverse) | 13.8kgf(Forward) 9.2kgf(reverse) |
| Max power | 490W | 600W |
| rated voltage | 24VDC | 48VDC |
| Operating voltage | 11.1-25.2 VDC | 22.2-50.4 VDC |
| Motor type | Brushless motor with external rotor | |
| Number of motor poles | 7 | |
| Spindle diameter | 8mm | |
| Spindle material | 316L Stainless steel | |
| Propeller diameter | 100mm | |
| Propeller configuration | CW/CCW | |
| Cable specification | Outer diameter:8mm length:1m inner core：3*2.5mm² |
|
| Withstand pressure depth | 300m | |
| Storage temperature | 0-40°C | |
| Operating temperature | 0-35°C | |
