Product Description
This underwater lighting fixture has the characteristics of low energy consumption, high brightness, imported sealing components, long service life, easy disassembly and maintenance. It is installed in various underwater equipment and widely used in large swimming pools, ocean observation, underwater rescue and other fields.
EK-L-3050100 IP68 Underwater 100m Light
Low energy consumption, available in 30/50/100W options
Made of stainless steel and aluminum alloy materials
IP68 waterproof rating
Product size(mm)
Product parameters
| Product Name |
Underwater light |
| Model |
EK-L-30W |
EK-L-50W |
EK-L-100W |
| Type of wick |
Preh's fifth generation COB LED chips from USA |
Preh's fifth generation COB LED chips from USA |
6V ( 4800MA) 12V ( 2400MA)
|
| Luminous flux |
11000(LM) |
5600(LM) |
4500-5000LM |
| Color temperature |
6500 (k) |
6500 (k) |
White light 6500K (1A), warm white 3000K (7B), natural light 5000K (3C) |
| Colour |
Pure white |
Pure white |
White light |
| Waterproof grade |
0-100m |
0-100m |
0-100m |
| Power supply |
12-48V |
12-48V |
12-48V |
| Electric current |
3500mA |
1750mA |
|
| Voltage |
30V |
30V |
30V |
| Working temperature |
-10°C-40°C |
-10°C-40°C |
-10°C-40°C |
| Size |
55*180mm(Excluding connector 34) |
55*180mm(Excluding connector 34) |
40*100mm(Excluding connector 34) |
| Shell material |
Stainless steel/titanium alloy/POM |
Stainless steel/titanium alloy/POM |
Stainless steel/titanium alloy/POM |
Product Features:
High luminous efficiency and low energy consumption:
Different brightness levels of 4500-1100 lumens are available, suitable for deep-sea lighting and underwater photography
Super waterproof performance
Designed to meet IP68 waterproof rating and withstand pressure at specific depths underwater
Imported seals have a long service life and are easy to disassemble and maintain
Corrosion resistance:
Made of stainless steel, aluminum alloy or specially treated materials, it can resist the corrosive environment underwater and ensure the durability of the lamp.
Impact resistance:
Sturdy structure, solid packaging, able to withstand impact and vibration, suitable for use in harsh environments.
Applications

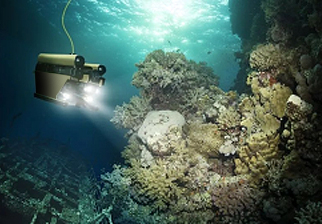

Underwater lighting fixtures are widely used in aquariums and ocean parks, large swimming pools, aquaculture, deep-sea exploration and scientific research, military and rescue, underwater construction and maintenance, and other scenarios due to their excellent waterproof performance and high-efficiency lighting.
Underwater construction and maintenance
Marine exploration and research
