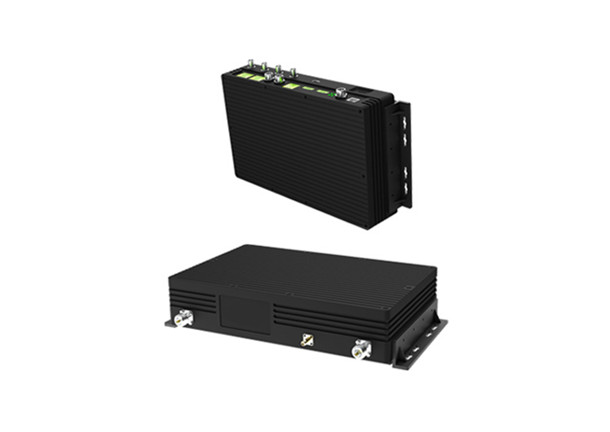

The EK-T3605 robot intelligent communication system onboard transmitter is a robot transmitter and specifically for firefighting robots, which integrates functions such as image merging and transmission, bidirectional data transmission, etc. It has powerful functions and stable performance. Adopting the leading MESH self-organizing network technology, images and data are encrypted during transmission, and can be used in conjunction with handheld remote controls to form an intelligent communication system for robots.
| RF parameters | Working frequency band | 1.4GHz，Customizable |
| Working bandwidth | Customizable, 20MHz (typical) | |
| RF Channel | 2T2R | |
| Transmission power | 36dBm | |
| Interface parameters | Radio Frequency Interface | N*2，SMA*1 |
| Video access | Supports ONVIF protocol network camera, analog/AHD/CVI video input | |
| Network interface | RJ45 interface | |
| Data interface | DATA1、DATA2、DATA3、IO1、IO2 | |
| Intercom interface | Five core aviation head | |
| Power interface | Three core aviation head | |
| Network parameters | Networking capability | The number of hops in the self-organized network shall not be less than 9, and the number of nodes in the self-organized network shall not be less than 64 |
| Distance | Ground to ground distance greater than 1.5km | |
| Throughput rate | 82Mbps(Max) | |
| Encryption algorithm | AES256 | |
| Physical/Environmental | Size | 300*185*68.8mm |
| Weight | 2.4kg | |
| Operation temperature | -20℃〜+70℃ | |
| Electrical characteristics | Power supply | 12V |
| Consumption | The average power consumption of the entire machine is less than 30W |
