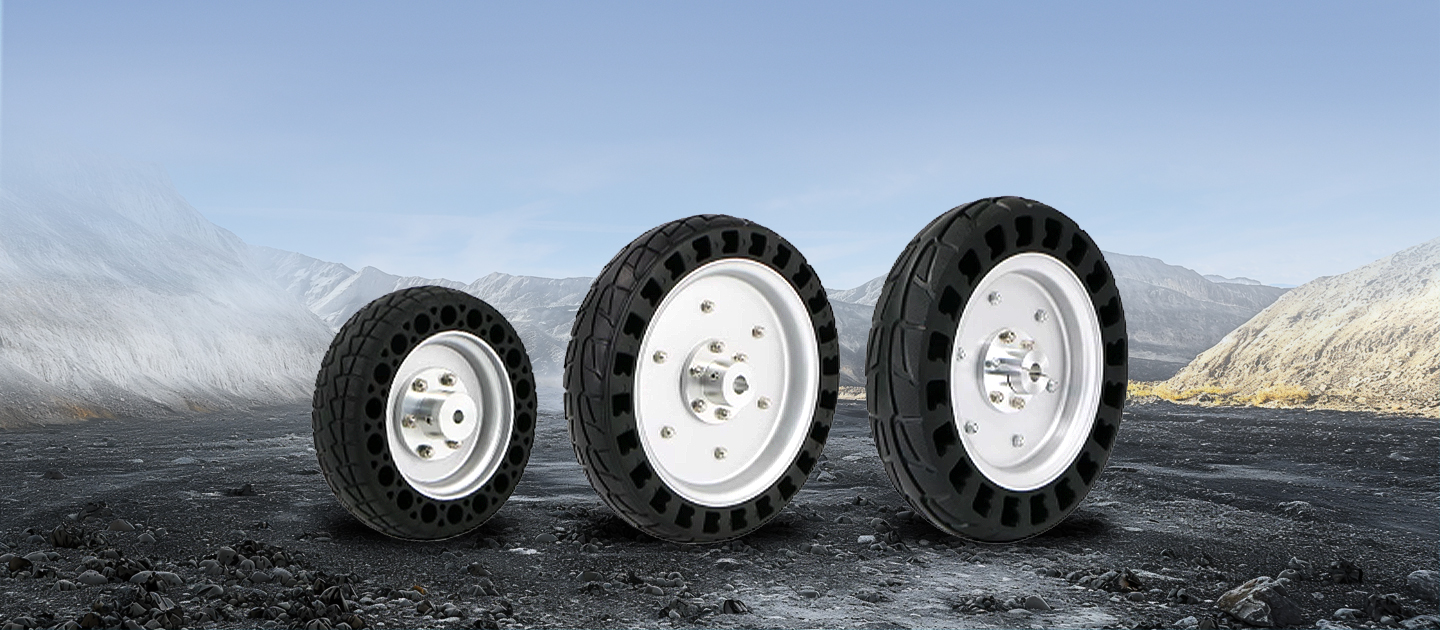

EK-WHC series honeycomb wheels are specialized tires for robots, made of TPE environmentally friendly material and metal wheels. The tire has strong load-bearing capacity and can carry a single tire load of over 60kg.
| Name | 6-inch honeycomb wheel | 8.5-inch honeycomb wheel | 10 inch honeycomb wheel |
| Weight | 0.84kg | 1.6kg | 1.76kg |
| Single tire load capacity | 50kg | 60kg | 75kg |
| Dual tire load capacity | 80kg | 90kg | 120kg |
| Load capacity of four tires | 140kg | 170kg | 240kg |
| Inner diameter of coupling | 5、6、8、10、12、14、15、16、18mm Optional (with keyway for 8mm and above) | ||
